• Wheels, 17" x 7" (43.2 cm x 17.8 cm) Sparkle Silver painted cast aluminum
• Tires, P235/60R17 all-season, blackwall (Tire may be replaced at manufacturer's discretion at no additional charge.)
• Tire, compact spare with jack and tool kit
• Luggage rack side rails, roof-mounted
• Fascias, front and rear, Black
• Headlamps, halogen with automatic exterior lamp control
• Fog lamps, front
• Mirrors, outside heated power-adjustable, body-color, manual-folding
• Glass, tinted
• Wipers, front intermittent with washer
• Wiper, rear intermittent with washer
• Door handles, Dark Graphite, mold-in-color

• Audio system, AM/FM stereo with CD player and MP3 playback seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed compensated volume, TheftLock, auxiliary input jack, and Universal Serial Bus (USB) port
• SiriusXM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select' package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio. (Requires (UE1) OnStar. Requires a subscription sold separately by SiriusXM after the trial period. If you decide to continue your service at the end of your subscription, service will automatically renew and bill, at the rates in effect at the time of renewal, until you call SiriusXM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Available only to those at least 18 and older in the 48 contiguous USA and D.C.)
• Audio system feature, 6-speaker system
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system (Requires (UE1) OnStar.)

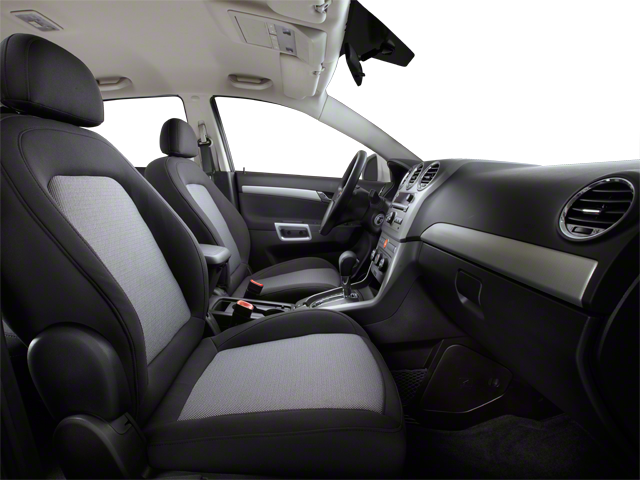

• Seats, Deluxe front bucket
• Seat trim, cloth
• Seat, front passenger fold-down
• Head restraints, front, 2-way, active
• Seat adjuster, 8-way power driver
• Seat adjuster, driver manual lumbar control
• Console, floor, Custom
• Floor mats, carpeted front
• Floor mats, carpeted rear
• Steering column, tilt and telescopic
• Steering wheel, leather-wrapped with audio controls
• Steering wheel controls, mounted audio controls
• Instrumentation, analog standard
• Driver Information Center includes tire pressure monitor display, fuel economy range, instant fuel economy, oil life monitor, compass, outside temperature display, warning messages and personalization options
• Oil life monitor
• Windows, power with driver Express-Down
• Door locks, power programmable
• Remote Keyless Entry
• Cruise control
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone automatic climate control
• Defogger, rear-window
• Glovebox, non-locking
• Power outlets, 3 auxiliary, 12-volt
• Mirror, inside rearview manual day/night
• Console, overhead
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handles, front passenger and rear outboard (Includes rear coat hooks when (CF5) power sunroof is ordered.)
• Map pocket, front seatback
• Cargo convenience net, rear

• StabiliTrak, stability control system
• Traction control
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal and side-impact, driver and rightfront passenger and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Door Unlock, Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Requires (U2K) SiriusXM Satellite Radio. Visit onstar.com for details and system limitations.)
• Tire Pressure Monitor System air pressure sensors in each tire, pressure display in Driver Information Center
• Pedal Release System

ENGINE, 2.4L DOHC 4-CYLINDER SIDI (SPARK IGNITION DIRECT INJECTION)

• with VVT (Variable Valve Timing) (182 hp [135.7 kW] @ 6700 rpm
• 172 lb-ft [232.2 N-m] @ 4900 rpm) (STD)

• Preferred Equipment Group 2LS
• 3.23 Axle Ratio
• 17" x 7" Sparkle Silver Painted Wheels
• Deluxe Front Bucket Seats
• Cloth Seat Trim
• AM/FM Stereo w/CD Player & MP3 Playback
• SIRIUSXM Satellite Radio
• 6-Speaker System
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Directions & Connections
• AM/FM radio: SiriusXM
• Front Center Armrest w/Storage
• Compass
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Roof rack: rails only
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear seat center armrest
• Rear reading lights
• Rear anti-roll bar
• Radio data system
• Power windows
• Power steering
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Fully automatic headlights
• Front reading lights
• Front fog lights
• Front anti-roll bar
• Four wheel independent suspension
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Brake assist
• Automatic temperature control
• Anti-whiplash front head restraints
• Alloy wheels
• ABS brakes
• Tachometer
• Spoiler
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Vehicle
• EPA Classification: FWD Sport Utility
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 23
• EPA Fuel Economy Est - City (MPG): 20
• EPA Fuel Economy Est - Hwy (MPG): 28
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 9.0
• Weight Information
• Base Curb Weight (lbs): 3760
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 150
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 225
• Maximum Trailering Capacity (lbs): 1500
• Suspension
• Suspension Type - Front: Strut-Type
• Suspension Type - Rear: Trailing Arm
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Stabilizer Bar Diameter - Front (in): 1.1
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.7 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 11.9 x 0.8
• Tires
• Front Tire Order Code: QMU
• Rear Tire Order Code: QMU
• Front Tire Size: P235/60R17
• Rear Tire Size: P235/60R17
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 17.2
• Lock to Lock Turns (Steering): 2.7
• Turning Diameter - Curb to Curb (ft): 40.0
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.2
• Exterior Dimensions
• Wheelbase (in): 106.6
• Length, Overall (in): 180.1
• Width, Max w/o mirrors (in): 72.8
• Height, Overall (in): 67.0
• Track Width, Front (in): 61.4
• Track Width, Rear (in): 61.8
• Min Ground Clearance (in): 7.8
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 56.4
• Cargo Volume to Seat 2 (ft³): 29.2
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 97.7
• Front Head Room (in): 40.2
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 56.0
• Front Hip Room (in): 52.6
• Second Head Room (in): 39.3
• Second Leg Room (in): 36.9
• Second Shoulder Room (in): 55.9
• Second Hip Room (in): 52.9
• Summary

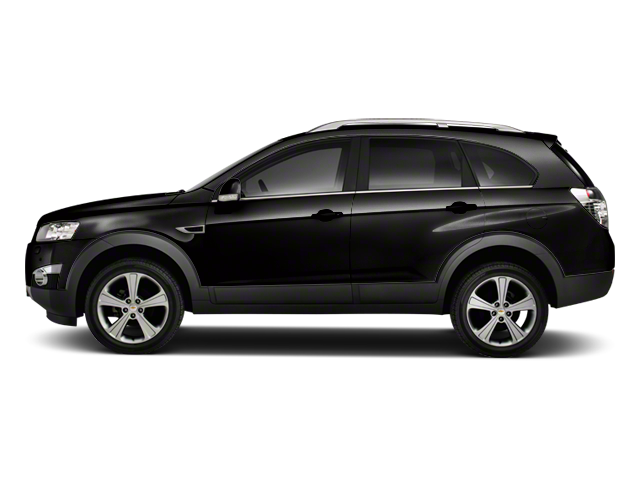

• Vehicle Name: Chevrolet Captiva Sport Fleet
• Body Style: Sport Utility
• Emissions
• EPA Greenhouse Gas Score: 6
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.0
